防靜電PVC潔淨室/ESD PVC條幕牆

Product Overview

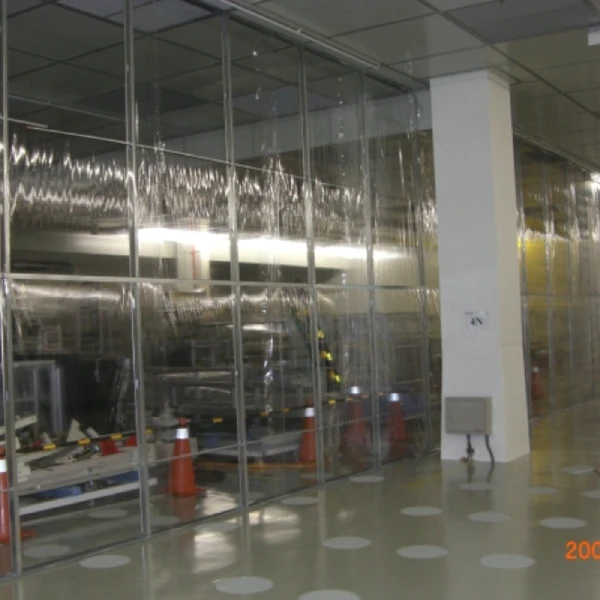

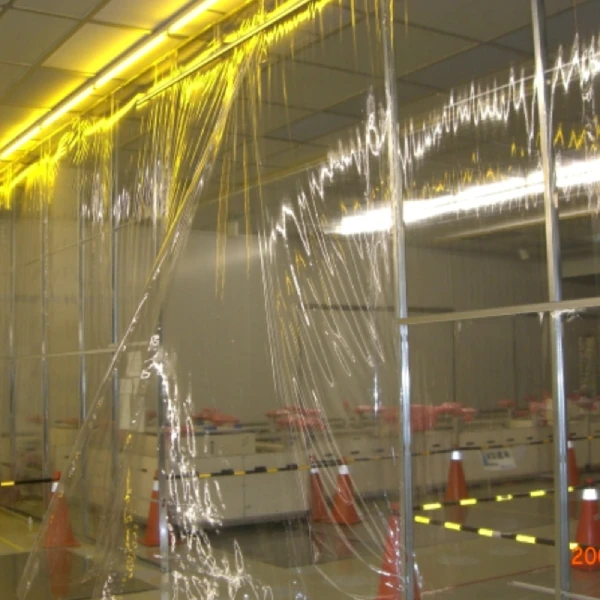

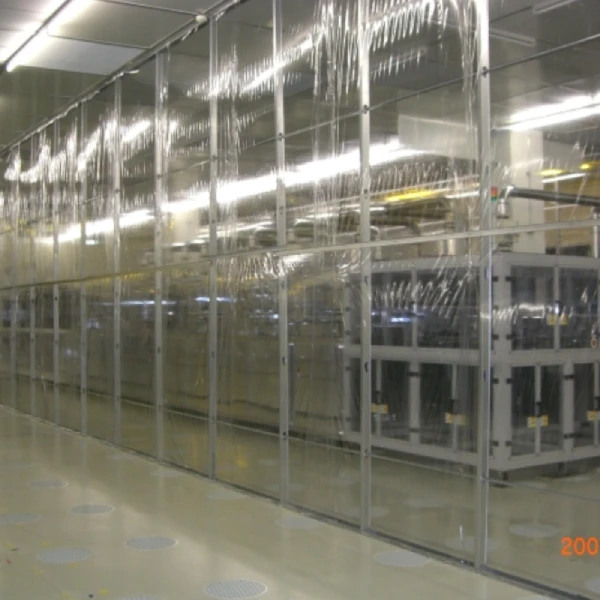

The Anti-Static PVC Clean Booth is a flexible, cost-effective contamination control enclosure designed to create a local clean zone within general workshops or existing cleanrooms. Constructed with anti-static PVC strip curtains and a lightweight industrial frame, it provides excellent accessibility, static dissipation, and reliable particle protection for ESD-sensitive processes.

This unit is ideal for applications requiring ISO Class 7–8 (Class 10,000–100,000) cleanliness with frequent personnel or material movement.

Key Features

• Anti-Static Protection

  Made from ESD-safe PVC material (surface resistance: 10⁸–10¹⁰ Ω/sq), preventing static charge buildup that could damage sensitive electronic components.

• Excellent Accessibility

  Overlapping transparent PVC strips allow personnel, trolleys, and small forklifts to push through easily without opening doors, then automatically reseal.

• Cost-Effective Solution

  Significantly lower capital cost compared to hardwall or acrylic clean booths – ideal for budget-conscious applications.

• Modular & Expandable

  Lightweight frame components allow for easy assembly, disassembly, and reconfiguration as production needs change.

• HEPA/ULPA Filtration (Optional)

  Ceiling-mounted fan filter units (FFUs) deliver ISO Class 5–7 clean air vertically downward when higher cleanliness is required.

• Excellent Visibility

  Transparent PVC strips provide clear visibility of operations while maintaining separation between clean and uncontrolled areas.

• Flexible Configurations

  Available as full enclosures, partial enclosures, or pass-through tunnels to suit various workflows.
