潔淨面板潔淨室/硬牆模組化潔淨室

Product Overview

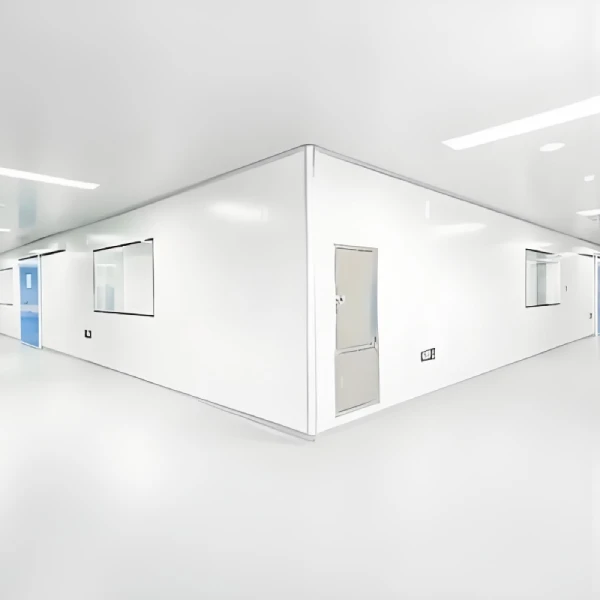

The Clean Panel Clean Booth is a rigid, high-integrity contamination control enclosure constructed from industrial-grade cleanroom sandwich panels. Unlike softwall (PVC) or semi-rigid (acrylic) booths, this hardwall solution provides superior sealing, thermal insulation, and structural durability – making it the preferred choice for ISO Class 5–7 (Class 100–10,000) applications requiring long-term stability and regulatory compliance.

This unit delivers cleanroom-grade performance at a fraction of the cost of a permanent cleanroom, while offering the flexibility to be relocated or expanded as needs change.

Key Features

• Rigid Sandwich Panel Construction

  Manufactured from fire-rated cleanroom panels (typically 50mm or 75mm thickness) with smooth, non-shedding surfaces – ideal for GMP environments.

• Superior Sealing & Containment

  Cam-lock or tongue-and-groove panel connections with seamless silicone sealing prevent air leakage and cross-contamination, maintaining cleanroom pressure differentials.

• Excellent Thermal Insulation

  Panel cores (PUF/PIR/rock wool) provide temperature stability – essential for processes requiring controlled ambient conditions.

• High Cleanliness Capability

  Designed to achieve ISO Class 5–7 (Class 100–10,000) with appropriate FFU configuration and air change rates.

• Durable, Easy-to-Clean Surfaces

  Smooth PVC-coated steel, stainless steel, or抗菌 (antimicrobial) surfaces resist chemical cleaning agents and can be wiped down repeatedly without damage.

• Modular & Expandable

  Panel-based construction allows for future expansion, reconfiguration, or complete relocation – unlike permanent cleanrooms.

• Integrated Utility Pass-Throughs

  Pre-configured ports for power, data, gas, and vacuum lines maintain seal integrity while allowing necessary connections.
